Nickel Alloy Plate

Inconel® Alloy 625

Available thicknesses for Inconel® alloy 625:

3/16"1/4"3/8"1/2"5/8"3/4"1"
4.8mm6.3mm9.5mm12.7mm15.9mm19mm25.4mm
1 1/4"1 1/2"1 3/4"2"2 1/2"3"
31.8mm38.1mm44.5mm50.8mm63.5mm76.2mm

Sandmeyer Steel Company is a supplier of Inconel® nickel alloy 625. An Austenitic Nickel-Chromium-Molybdenum-Niobium Alloy with Outstanding Corrosion Resistance and High Strength from Cryogenic Temperatures to 1800°F (982°C)

General Properties

Inconel® alloy 625 is an austenitic nickel-chromium-molybdenum-niobium alloy possessing a rare combination of outstanding corrosion resistance coupled with high strength from cryogenic temperatures to 1800°F (982°C).

The strength of Inconel® alloy 625 is derived from the solid-solution hardening of the nickel-chromium matrix by the presence of molybdenum and niobium. Therefore, precipitation-hardening treatments are not required.

The chemical composition of Inconel® alloy 625 is also responsible for its outstanding corrosion resistance in a variety of severe operating environments along with resistance to oxidation and carburization in high temperature service. This nickel alloy is resistant to pitting, crevice corrosion, impingement corrosion, intergranular attack and is almost immune to chloride stress corrosion cracking.

Inconel® alloy 625 can be easily welded and processed by standard shop fabrication practices.

Applications

  • Aerospace Components – bellows and expansion joints, ducting systems, engine thrust-reversers, turbine shroud rings
  • Air Pollution Control – chimney liners, dampers, flue gas desulfurization (FGD) components
  • Chemical Processing – equipment handling both oxidizing and reducing acids, super-phosphoric acid production
  • Marine Service – steam line bellows, Navy ship exhaust systems, submarine auxiliary propulsion systems
  • Nuclear Industry – reactor core and control rod components, waste reprocessing equipment
  • Offshore Oil and Gas Production – waste flare gas stacks, piping systems, riser sheathing, sour gas piping and tubing
  • Petroleum Refining – waste flare gas stacks
  • Waste Treatment – waste incineration components

Standards

ASTM………………B 443
ASME………………SB 443
AMS ……………….5599

Chemical Analysis

Weight % (all values are maximum unless a range is otherwise indicated)

Nickel58.0 min.Silicon0.50
Chromium20.0 min.-23.0 max.Phosphorus0.015
Molybdenum8.0 min.-10.0 max.Sulfur0.015
Iron5.0Aluminum0.40
Niobium (plus Tantalum)3.15 min.-4.15 max.Titanium0.40
Carbon0.10Cobalt (if determined)1.0
Manganese0.50

Physical Properties

Density

0.305 lbs/in3
8.44 g/cm3

Specific Heat

0.102 BTU/lb-°F (32-212°F)
427 J/kg-°K (0-100°C)

Modulus of Elasticity

30.1 x 106 psi
207.5 GPa

Thermal Conductivity 200°F (100°C)

75 BTU/hr/ft2/ft/°F
10.8 W/m-°K

Melting Range

2350 – 2460°F
1290 – 1350°C

Electrical Resistivity

50.8 Microhm-in at 70°C
128.9 Microhm-cm at 210°C

Mean Coefficient of Thermal Expansion
Temperature Range
°F°Cin/in/°Fcm/cm°C
200937.1 x 10-612.8 x 10-6
4002047.3 x 10-613.1 x 10-6
6003167.4 x 10-613.3 x 10-6
8004277.6 x 10-613.7 x 10-6
10005387.8 x 10-614.0 x 10-6
12006498.2 x 10-614.8 x 10-6
14007608.5 x 10-615.3 x 10-6
16008718.8 x 10-615.8 x 10-6
17009279.0 x 10-616.2 x 10-6

Mechanical Properties

Typical Values at 68°F (20°C)

Yield Strength
0.2% Offset
Ultimate Tensile
Strength
Elongation
in 2"
Hardness
psi (min.)(MPa)psi (min.)(MPa)% (min.)(max.)
65,000448125,00086250200 Brinell

Corrosion Resistance

The highly alloyed chemical composition of Inconel® alloy 625 imparts outstanding corrosion resistance in a variety of severely corrosive environments. This nickel alloy is virtually immune to attack in mild conditions such as the atmosphere, fresh and sea water, neutral salts and alkaline solutions. Nickel and chromium provide resistance to oxidizing solutions and the combination of nickel and molybdenum supply resistance in non-oxidizing environments. Molybdenum also makes Inconel® alloy 625 resistant to pitting and crevice corrosion, while niobium acts as a stabilizer during welding to prevent intergranular cracking. The high nickel content of Inconel® alloy 625 makes it virtually immune to chloride stress corrosion cracking.

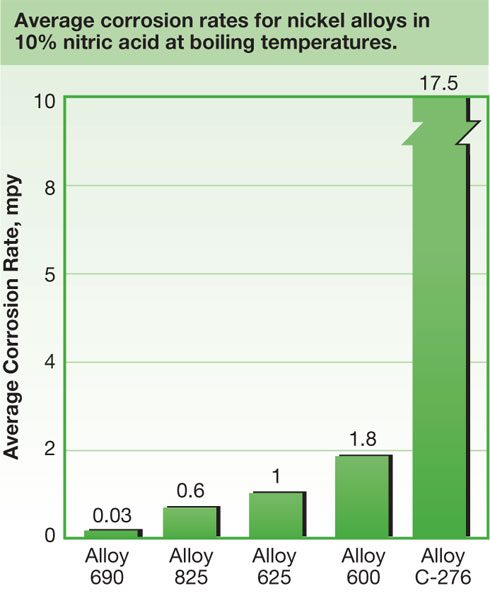

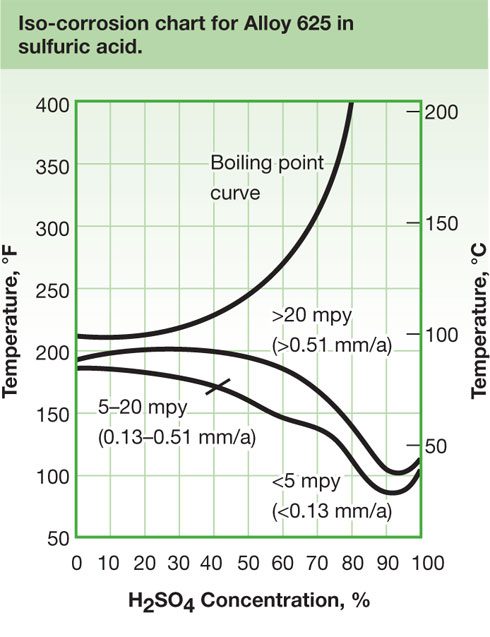

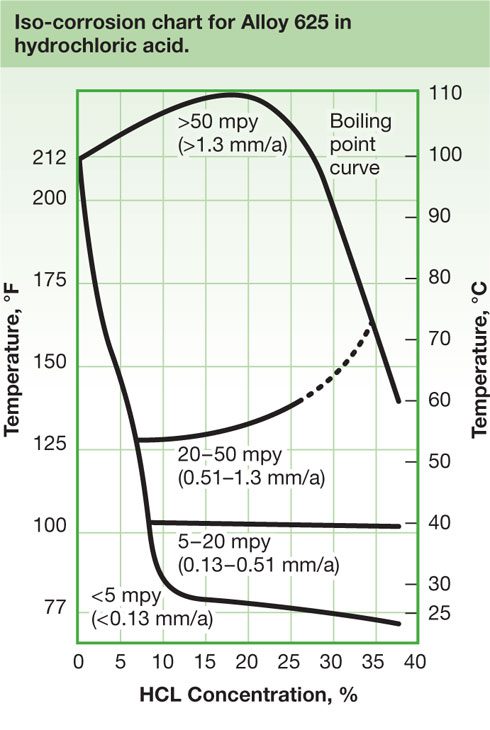

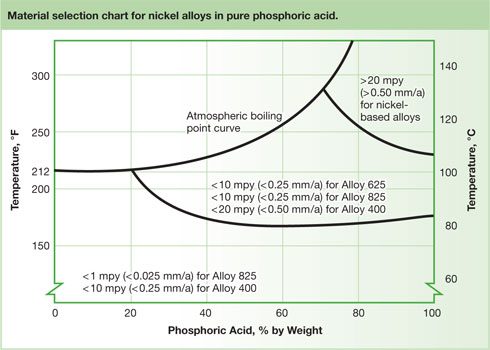

The alloy resists attack by mineral acids such as hydrochloric, nitric, phosphoric and sulfuric, and to alkalis and organic acids in both oxidizing and reducing conditions.

Corrosion-resistance of nickel alloys in 24-hour tests in boiling 40% formic acid.

Alloy
Corrosion Rate
mpymm/a
Incoloy® Alloy 8257.90.2
Nickel 20010.3-10.50.26-0.27
Monel® Alloy 4001.5-2.70.038-0.068
Inconel® Alloy 60010.00.25
Alloy G-31.8-2.10.046-0.05
Alloy 6256.8-7.80.17-0.19
Hastelloy® Alloy C-2762.8-2.90.07-0.074

Corrosion-resistance of nickel alloys in four 24-hour tests in boiling acetic acid

Alloy
Acetic Acid
Concentration
Corrosion/Erosion Rate
mpymm/a
Incoloy® Alloy 82510%0.60-0.630.0152-0.160
Inconel® Alloy 62510%0.39-0.770.01-0.19
Hastelloy® Alloy C-27610%0.41-0.450.011-0.0114
Alloy 68680%<0.1*<0.01*

Resistance of nickel alloys to impingement attack by seawater at 150 ft/sec (45.7 m/s)

Alloy
Corrosion/Erosion Rate
mpymm/a
Inconel® Alloy 625NilNil
Incoloy® Alloy 8250.30.008
Alloy K-5000.040.01
Monel® Alloy 4001.5-2.70.038-0.068
Inconel® Alloy 6000.40.01
Nickel 200401.0

The comparative PREN number for alloy 625 is shown in the table below.

Pitting resistance equivalency numbers (PREN) for corrosion resistant alloys

AlloyNiCrMoWNbNPREN
316 Stainless Steel12172.220.4
317 Stainless Steel13183.823.7
Incoloy® Alloy 8254221.5326.0
Alloy 86434214.327.4
Alloy G-34422732.5
Inconel® Alloy 625622293.540.8
Hastelloy® Alloy C-2765816163.545.2
Alloy 6226020.5143.546.8
SSC-6MO24216.20.2248.0
Alloy 6865820.516.33.550.8

Oxidation Resistance

The oxidation and scaling resistance of Inconel® alloy 625 is superior to a number of heat resistant austenitic stainless steels such as 304, 309, 310 and 347 up to 1800°F (982°C) and under cyclic heating and cooling conditions. Above 1800°F (982°C), scaling can become a restrictive factor in service.

Fabrication Data

Inconel® alloy 625 can be easily welded and processed by standard shop fabrication practices, however because the high strength of the alloy, it resists deformation at hot-working temperatures.

Hot Forming

The hot-working temperature range for Inconel® alloy 625 is 1650 – 2150°F (900 – 1177°C). Heavy working needs to occur as close to 2150°F (1177°C) as possible, while lighter working can take place down to 1700°F (927°C). Hot-working should occur in uniform reductions to prevent duplex grain structure

Cold Forming

Inconel® alloy 625 can be cold-formed by the standard shop fabrication practices. This nickel alloy should be in the annealed condition. Work hardening rates are higher than the austenitic stainless steels.

Welding

Inconel® alloy 625 can be readily welded by most standard processes including GTAW (TIG), PLASMA, GMAW (MIG/MAG), SAW and SMAW (MMA). A post weld heat treatment is not necessary. Brushing with a stainless steel wire brush after welding will remove the heat tint and produce a surface area that does not require additional pickling.

Machining

Inconel® alloy 625 should preferably be machined in the annealed condition. Since this nickel alloy is prone to work–hardening, only low cutting speeds should be used and the cutting tool should be engaged at all times. Adequate cut depth is necessary to assure avoiding contact with the previously formed work-hardened zone.

NOTE: The information and data in this product data sheet are accurate to the best of our knowledge and belief, but are intended for informational purposes only, and may be revised at any time without notice. Applications suggested for the materials are described only to help readers make their own evaluations and decisions, and are neither guarantees nor to be construed as express or implied warranties of suitability for these or other applications. Stainless Steel, Nickel Alloy and Titanium products are classified as sheet if the thickness of the metals is less than 3/16” (4.7mm). If the thickness of the metal is 3/16” (4.7mm) or more, then it is considered a plate.
Trademark Notices
Inconel®, Incoloy®, and Monel® are registered trademarks of Special Metals Corporation.
Hastelloy® is a registered trademark name of Haynes International, Inc.
